OTT DIFFUSERS

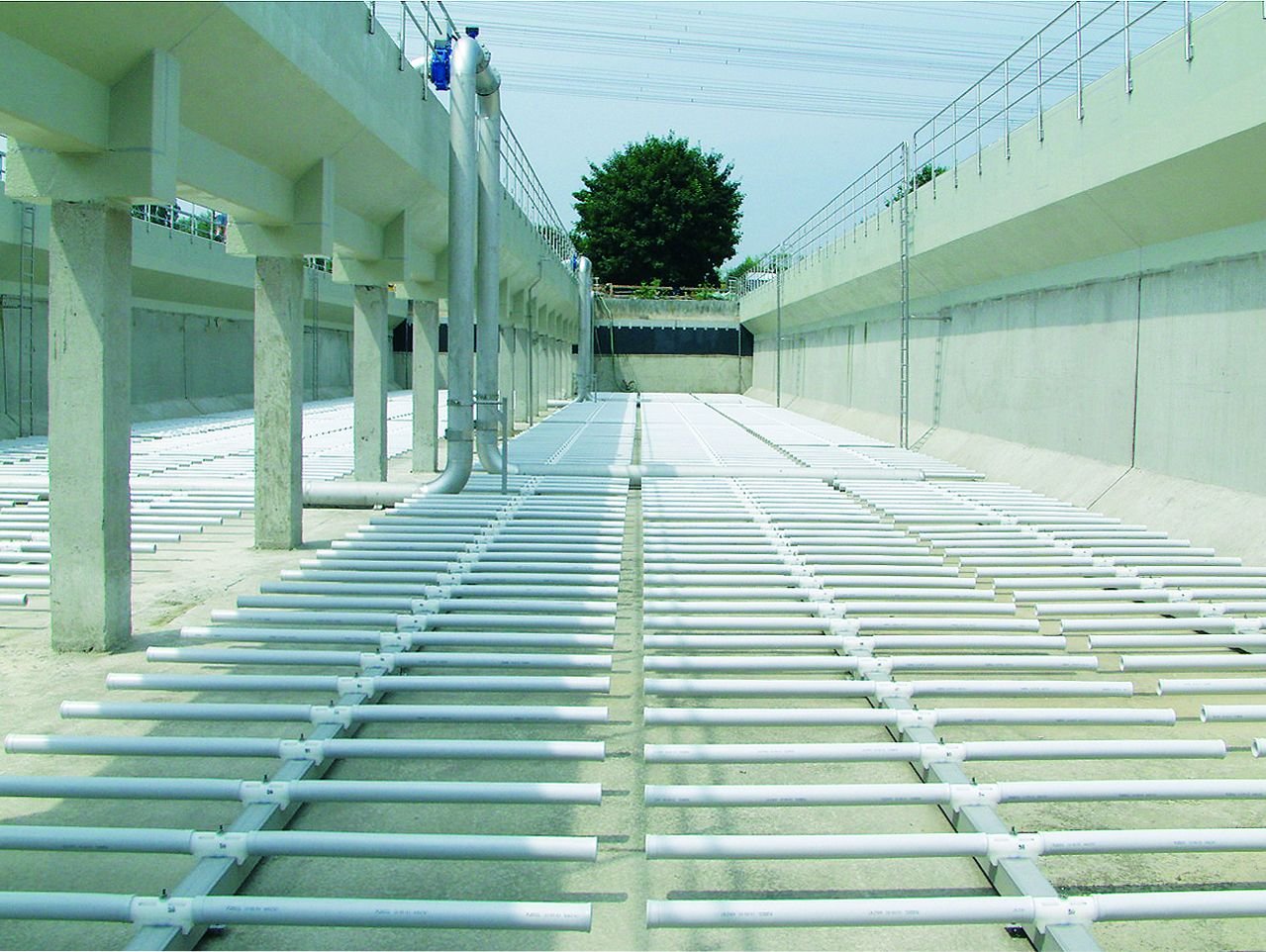

OTT MAGNUM® diffusers are installed on laterals as integrated twin-diffuser units. Their CLIPIN® connectors permit rapid installation on stainless steel and plastic laterals of all types.

<< The monolithic PP diffuser body provides reliable service at operating temperatures up to 120°C (248°F) and is fully resistant to formic acid.
<< MAGNUM® can be installed on laterals with 30 or 38 mm diameter outlet openings located at the 12 o’clock position (i.e. facing straight up).
<< MAGNUM® tube diffusers are available with EPDM (FLEXNORM®) or silicone (FLEXSIL®, FLEXSIL®+) membranes. We offer a wide range of perforation patterns which can be selected in accordance with specific application requirements.
<< MAGNUM® tube diffusers are available in the standard effective lengths 1000 mm, 1500 mm and 2000 mm. Custom lengths and diffusers shortened on one side are available on request

The PP diffuser body provides reliable service at operating temperatures up to 120°C (248°F) and is fully resistant to formic acid.

MAGNUM® can be installed on laterals with 30 or 38 mm diameter (1.18″ or 1.49″) outlet openings located at the 12 o’clock position (i.e. facing straight up). There are interchangeable connection adapters for rectangular and round headers.

MAGNUM® tube diffusers are available with EPDM (FLEXNORM®) or silicone (FLEXSIL®) membranes. We offer a wide range of perforation patterns which can be selected in accordance with specific application requirements.

MAGNUM® tube diffusers are available in the standard effective lengths 1000 mm, 1500 mm and 2000mm (47,2″, 66,9″, 86,6″).

Custom lengths and diffusers shortened on one side are available on request.
