Sludge Dewatering Machine

 An Advanced, Efficient Solution for Sludge Management

In the era of growing environmental regulations and the increasing need for sustainable wastewater treatment, industries and municipalities are under pressure to manage sludge more efficiently. One of the most effective, economical, and low-maintenance solutions for sludge treatment is the Multi-disc Screw Press (MDSP). This innovative machine has revolutionized the sludge dewatering process with its compact design, continuous operation, and minimal energy consumption.

What is Sludge Dewatering?

Sludge dewatering is a process that separates water from sludge to reduce its volume and weight. This is a crucial step in wastewater treatment, as it reduces the cost of transportation, disposal, and further treatment. The dewatered sludge—often referred to as “cake”—is easier to handle, store, and dispose of, or can even be repurposed for use as compost, fuel, or in land application.

Traditional methods such as centrifuges, belt presses, and filter presses, although effective, often come with high energy consumption, frequent maintenance, and complex operation. The Multi-disc Screw Press offers a modern alternative that addresses many of these challenges.

What is a Multi-disc Screw Press?

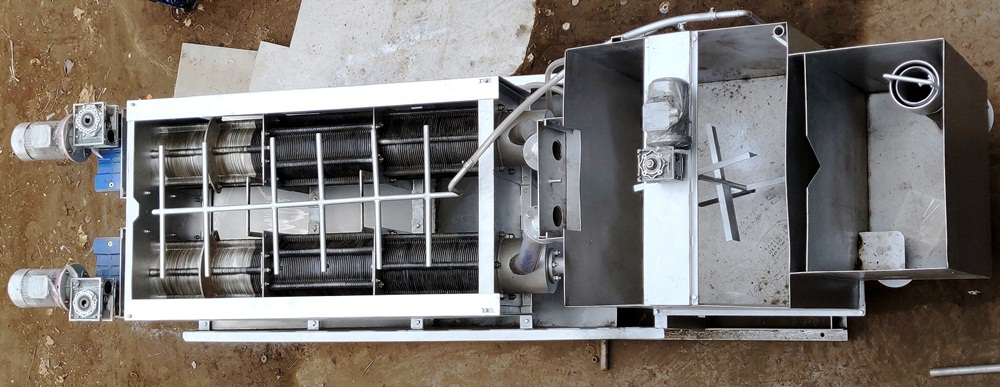

A Multi-disc Screw Press is a compact, automated, and energy-efficient machine designed for the continuous dewatering of sludge. The key components of this system include:

• Screw Shaft (Auger)

• Fixed and Moving Rings (Discs)

• Flocculation Tank

• Sludge Cake Outlet

• Filtrate Outlet

The unit works on a combination of mechanical pressure and filtration. As sludge is introduced into the flocculation tank, polymer is added to promote the binding of fine particles. The flocculated sludge then enters the dewatering drum, where it is gradually compressed by the screw while excess water is filtered out through the gaps between the discs.

Working Principle

The operation of a Multi-disc Screw Press follows these basic steps:

1. Sludge Conditioning
   Polymer is mixed with the incoming sludge to agglomerate the solid particles, forming larger flocs. This increases filtration efficiency.

2. Sludge Feeding
   The conditioned sludge is fed into the dewatering drum.

3. Thickening and Dewatering
   The drum consists of a screw shaft that rotates slowly. Surrounding this screw are alternating fixed and moving rings. As the screw rotates, it transports the sludge toward the outlet. During this movement:

   • Water is drained through the narrow gaps between the discs.

   • Pressure increases as the pitch of the screw tightens and the volume decreases, squeezing more water out of the sludge.

4. Cake Discharge
   The dewatered sludge (now a semi-solid cake) is pushed out from the end of the screw shaft for disposal or reuse.

Key Features and Benefits

1. Low Power Consumption

The screw press operates at a low rotational speed (typically 2–5 RPM), resulting in significantly lower power usage compared to centrifuges or belt presses. This leads to reduced operational costs.

2. Minimal Water Usage

Unlike belt presses which require a constant flow of wash water to clean belts, the MDSP uses self-cleaning rings that reduce water usage dramatically.

3. Continuous and Automated Operation

Designed for 24/7 operation, the MDSP has minimal operator requirements. Most models include automatic polymer dosing, sludge feeding, and cake discharge systems.

4. Compact and Space-saving Design

Its compact footprint makes it ideal for plants with limited space. The enclosed design also minimizes odor and improves plant hygiene.

5. Low Noise and Vibration

With slow operation and fewer moving parts, the MDSP generates minimal noise, creating a safer and more pleasant work environment.

6. High Dewatering Efficiency

Depending on the type of sludge and polymer used, the MDSP can achieve solid contents in the range of 18% to 30%, making it competitive with traditional systems.

Applications of Multi-disc Screw Press

The versatility of the Multi-disc Screw Press allows it to handle a wide variety of sludge types. It is suitable for:

• Municipal Wastewater Treatment Plants

• Effluent Treatment Plants (ETP)

• Sewage Treatment Plants (STP)

• Food & Beverage Industry

• Paper & Pulp Industry

• Textile & Dyeing Industry

• Chemical & Pharmaceutical Plants

• Tannery & Leather Processing Units

Whether dealing with oily sludge, organic sludge, or fibrous sludge, the MDSP can adapt and deliver consistent performance.

Why Choose a Multi-disc Screw Press Over Traditional Methods?

Environmental Impact

The MDSP contributes to environmental sustainability in multiple ways:

• Reduced Sludge Volume: Less volume means fewer trips for disposal and lower emissions.

• Energy Efficiency: Conserves energy compared to older technologies.

• Lower Chemical Usage: Advanced flocculation systems minimize polymer requirement.

• Enclosed Operation: Prevents odor, spillage, and contamination.

Maintenance and Durability

One of the major advantages of the Multi-disc Screw Press is its low-maintenance design. The absence of high-speed rotating parts reduces mechanical wear. The discs are self-cleaning, and many models come with stainless steel construction (SS304 or SS316), ensuring corrosion resistance and a long operational life.

Routine maintenance includes:

• Polymer preparation system checks

• Occasional inspection of moving rings and screw shaft

• Monitoring sludge inlet characteristics

With proper care, the MDSP can function efficiently for 10+ years with minimal downtime.

Conclusion

The Multi-disc Screw Press represents the future of sludge dewatering. Its energy efficiency, low maintenance, and automated features make it the preferred choice for a wide range of industries. As environmental regulations become more stringent and operational efficiency takes center stage, investing in a Multi-disc Screw Press is not just a smart choice—it’s a strategic one.

For industries looking to reduce operational costs, improve sustainability, and handle sludge effectively, the MDSP offers a reliable and proven solution.
